Overview of HDPE waterproofing membrane 1.5mm
Definition and characteristics of HDPE waterproofing membrane
HDPE (High Density Polyethylene) waterproofing membrane is a non-reinforced geosynthetic material with high durability and absolute waterproofing when properly welded.
- The main material is virgin HDPE resin, enhanced with carbon black (UV resistant) and thermal stabilizers.
- Key properties: high tensile strength, low elongation, chemical resistance, thermal stability, impermeability, and strong impact resistance.
- In construction, HDPE waterproofing membrane acts as a separation and sealing layer for foundations, basements, and technical tanks.
Role of HDPE membrane in civil and industrial structures
- In civil and industrial works, especially foundations, basements, underground tanks, and technical pits, HDPE membranes prevent groundwater infiltration and leakage from soil, ensuring concrete durability.
- Compared with bitumen, PVC, or EVA membranes, HDPE is more flexible, tear-resistant under ground movement, easier to weld, and less intrusive to concrete structure.
- HDPE waterproofing membrane 1.5 mm is thick enough to withstand high hydrostatic pressure, minimize installation risks, and meet requirements for high-grade and industrial projects.
Reasons to choose 1.5mm thickness for concrete waterproofing structures
- Safety threshold: The HDPE waterproofing membrane 1.5mm ensures welded joints can handle water pressure with minimal puncture risk.
- Flexibility & adaptability: When minor ground shifts occur, the 1.5mm HDPE membrane resists tearing better than thinner (<1mm) sheets.
- Cost-efficiency: Compared to 2mm HDPE, 1.5mm thickness offers optimal cost per m² while maintaining technical performance.
- Longevity: The 1.5mm HDPE membrane reduces weak points and extends the waterproofing system’s lifespan.
Technical standards and quality certification of Visco HDPE
Production specifications meeting ASTM and TCVN standards
Visco’s HDPE waterproofing membrane 1.5 mm is manufactured under ASTM standards (ASTM D-5199, ASTM D-6693…) and the Vietnamese standard TCVN 10812:2014 for HDPE membranes.
- Roll width: commonly 6–8 m; length as per order.
- Thickness control ±5% per roll.
- Carbon black content (≥2%) for UV protection.
- Factory testing: thickness, tensile strength, permeability, and static water pressure resistance.
Key mechanical indicators: tensile strength and deformation resistance
- Tensile strength: typically ≥25 kN/m depending on thickness.
- Elongation at break: around 700% or higher for flexibility.
- Tear and puncture resistance: ensures the membrane withstands sharp objects.
- Creep resistance: maintains shape under long-term pressure.
- Permeability: <1×10⁻¹³ m/s ensuring absolute waterproofing.
Waterproofing and chemical resistance in construction environments
The HDPE waterproofing membrane 1.5mm Visco is designed to endure construction conditions:
- Provides absolute waterproofing when welded correctly.
- Resistant to chemicals, mild acids, and alkalis found in concrete and soil.
- UV and aging resistant thanks to carbon black; suitable for outdoor use.
- Thermally stable between –40°C to +80°C without deformation.
Applications of HDPE waterproofing membrane 1.5mm in infrastructure construction
Use in foundations and basements of high-rise buildings
Basements and foundations under groundwater pressure require strong waterproofing. The 1.5mm HDPE membrane forms an external barrier on retaining walls and pits, reducing seepage and protecting the concrete structure.
Use in technical water tanks and industrial treatment basins
Technical and wastewater tanks require absolute waterproofing. 1.5mm thickness is ideal to handle vertical water pressure and ground stresses without leakage.
Use in roads, bridges, and urban infrastructure
For roof waterproofing, expansion joints, utility pits, and protection layers, the HDPE waterproofing membrane 1.5mm acts as a seal between concrete and covering layers, minimizing cracking and seepage from thermal and structural movements.

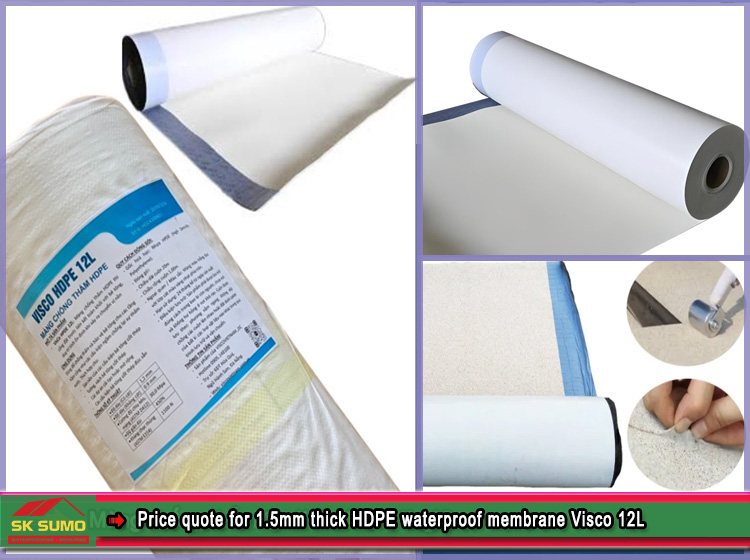

Price list for HDPE waterproofing membrane 1.5mm Visco 12L
Reference price per m²
Below is the reference price list for HDPE waterproofing membrane 1.5 mm (excluding VAT, transport, and welding costs):
Type / Brand
|
Reference price
|
Visco HDPE 1.5 mm
|
~55,000 VND/m²
|
HSE HDPE 1.5 mm
|
~66,500 VND/m²
|
GSE HDPE 1.5 mm
|
~72,000 VND/m²
|
Hoa Phat HDPE 1.5 mm
|
~73,000 VND/m²
|
Welding labor cost
|
~5,000 VND/m²
|
Note: Prices are for estimation only. Actual cost depends on volume, transportation, raw material prices, and distributor promotions.
Factors affecting the price of HDPE waterproofing membrane 1.5mm
- Order quantity: large volumes receive better discounts.
- Transportation distance and site conditions.
- Raw material fluctuations (HDPE resin, oil price).
- Additive and testing costs: higher standards raise prices.
- Welding complexity: slope or humidity increases labor cost.
- Brand and origin: premium certified brands like Visco may cost more but ensure durability and warranty.
Comparison of Visco 12L HDPE 1.5mm price with others
Product
|
Reference price
|
Visco HDPE 1.5mm
|
~60,000 VND/m²
|
HSE HDPE 1.5mm
|
~66,500 VND/m²
|
GSE HDPE 1.5mm
|
~72,000 VND/m²
|
HDPE 2.0mm
|
~87,000 VND/m²
|
Installation guide for HDPE waterproofing membrane in construction
Standard installation and welding process
- Prepare the surface: level ground, remove sharp objects, place protective layer (geotextile or fine sand).
- Unroll the HDPE membrane with 10–15 cm overlap.
- Hot wedge or extrusion weld with correct temperature and speed.
- Reinforce corners and penetrations.
- Perform leak and vacuum tests.
Checklist before completion:
- Joints meet tensile standards.
- No wrinkles or trapped debris.
- Edges clean, sealed properly.
- Leak test passed.
Weld inspection and quality assurance
- Use non-destructive testing (helium, pressure, vacuum).
- Visual inspection for discoloration or defects.
- Pull test for sample welds.
- Document inspection reports before concrete coverage.
Precautions for humid or concrete surfaces
- Avoid wet or flooded substrates; ensure dryness.
- Level new concrete surfaces before laying.
- Avoid welding below 5°C or above 50°C.
- Provide mechanical anchoring on slopes or hydraulic zones.
- Do not overstretch membrane; allow for thermal movement.
Key advantages of HDPE waterproofing membrane 1.5mm Visco 12L
Modern extrusion technology and superior mechanical strength
Visco’s HDPE waterproofing membrane 1.5 mm 12L uses advanced multi-layer extrusion technology for uniform structure and perfect interlayer bonding.
- Thickness precision ±0.05 mm ensures consistent quality.
- Tensile ≥25 kN/m, elongation ≥700 %, high tear and puncture resistance.
- No leakage after 30 m water pressure test.
This places Visco HDPE 12L among the top-tier geosynthetic waterproofing materials, outperforming PVC, EVA, and bitumen membranes.
UV resistance and high thermal stability
With carbon black and antioxidant additives, the HDPE 1.5mm membrane resists UV degradation and aging for over 15 years of direct sunlight exposure.
- Heat resistance from –40°C to +80°C ensures performance across climates.
- Suitable for underground and exposed structures such as roofs, tanks, and outdoor basements.
Economic efficiency and long service life
The HDPE waterproofing membrane 1.5mm achieves the ideal balance between cost and durability:
- Reduced material use vs. 2 mm while maintaining performance.
- Faster installation, lower labor cost, and perfect waterproofing.
- Average lifespan 15–30 years, minimizing maintenance costs.
Buying and usage guide for HDPE 1.5mm membrane
Selection criteria for each project
Check the following before purchase:
- Certifications (ASTM D5199, D6392, TCVN 10812).
- Thickness ≥ 1.5 mm, tensile ≥ 25 kN/m.
- Chemical and UV resistance.
- Dimensional stability (< 3 % shrinkage).
- Clear origin and test reports.
How to identify genuine Visco HDPE membrane
Look for Visco warranty seal, embossed logo, and QR code verification.
- Smooth, uniform surface without waves.
- Clean cut edges (no white fiber strands).
- Elastic and uniformly black, typical of virgin HDPE.
Tips for working with professional contractors
Most leaks come from poor welding, not materials.
- Work with certified HDPE welders.
- Conduct water pressure and vacuum tests after each section.
- Use third-party or Visco supervision for proper inspection.
Warranty and technical service from SKSumo Đà Nẵng
Warranty duration and on-site support
Visco’s HDPE waterproofing membrane 1.5mm is covered by SKSumo Đà Nẵng warranty up to 20 years.
- Covers manufacturing defects, delamination, and quality loss.
- On-site inspection within 72 hours of report.
Issue handling and maintenance process
- Site analysis and damage assessment.
- Repair proposal (patch, replace, or reinforce).
- Re-test with water pressure for 48 hours.
→ Recommendation: perform maintenance every 2–3 years for long-term durability.
Benefits of full-package HDPE waterproofing service
- Lower total cost, unified quality control.
- Minimized coordination errors between suppliers and installers.
- Comprehensive warranty and technical responsibility.
Conclusion on HDPE 1.5mm membrane efficiency in construction
Technical and economic benefits
The HDPE waterproofing membrane 1.5 mm combines high tensile strength, UV and chemical resistance, long life, low maintenance cost, and wide applicability.
Recommendation for large-scale projects
With international quality and long warranty, Visco HDPE 1.5mm 12L is ideal for basements, technical tanks, roads, and wastewater facilities requiring absolute waterproofing.
Long-term sustainability and cost optimization
Investing in premium HDPE 1.5mm membranes reduces 40–60 % of future repair costs and ensures long-term structural durability.
Choosing Visco HDPE ensures durable, safe waterproofing and cost-effective performance — the best solution for basements, tanks, and industrial infrastructure projects.
FAQs about HDPE waterproofing membrane 1.5mm
Is 1.5mm HDPE membrane suitable for concrete roofs?
Yes. It resists UV, heat, and weather expansion, keeping roofs durable and leak-free.
Which is better: 1.5mm HDPE or bitumen membrane?
HDPE is stronger, more chemical-resistant, and easier to maintain. For large structures, HDPE is the better option.
How often should HDPE membranes be inspected or replaced?
Every 10–20 years or when leaks appear. Maintenance every 2–3 years is advised.
Can HDPE membranes be installed during rain?
No. Wet conditions affect weld quality. Wait for dry surfaces or use temporary covers.
Is HDPE 1.5mm membrane recyclable?
Yes. Virgin HDPE is fully recyclable, supporting sustainable, eco-friendly construction.
